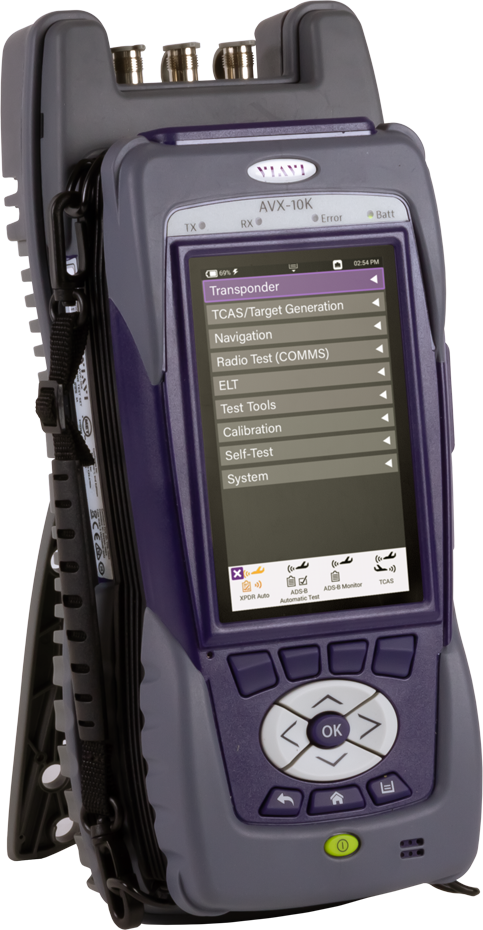

VIAVI AVX-10K Flight Line Test Set
The VIAVI AVX-10K is a portable flight-line avionics test set that tests an aircraft's transponder (Mode A/C/S), ADS-B Out and In, TCAS, DME/TACAN, VOR, ILS and communication radios from one instrument, and also checks RF cables with VSWR and distance-to-fault [1]. Airline, MRO and business-aviation avionics technicians use it for ramp return-to-service and periodic checks. Novatelia supplies it by RFQ to customers in Oman and qualified GCC projects.
| Manufacturer | VIAVI Solutions |
|---|---|
| Model | AVX-10K |
| Manufacturer part number | Not published here — confirmed at quotation |
| Product family | AVX flight line test sets |
| Primary category | Avionics Test Equipment |
| Secondary categories | ADS-B & Transponder Test Equipment |
| Technology | Surveillance, navigation, communications RF test |
| Aircraft systems | ATC transponder, ADS-B, TCAS, DME, VOR/ILS, COM radios, Antennas/feeders |
| Maintenance type | Line and base maintenance; return-to-service |
| Customer types | Airline, MRO, Business aviation |
| Region | Oman; selected GCC projects |
| Commercial status | Request a quote (no public price) |
Primary applications
- Transponder testing
- ADS-B Out/In
- TCAS
- DME/TACAN
- VOR/ILS
- VHF/HF comms
Key capabilities
- Transponder Auto tests incl. FAR Part 43 [1]
- ADS-B Auto tests per AC 20-165 and CS-ACNS [1]
- Up to five static 1090 MHz ADS-B/ADS-R/TIS-B targets [1]
- TCAS I/II, TAS, E-TCAS intruder scenarios [2]
Technical specifications
Values below are copied from the manufacturer documentation cited; confirm against the current OEM data sheet before ordering.
| Parameter | Value | Source |
|---|---|---|
| TCAS reply frequency | 1090 MHz, ±10 kHz | [3] |
| TCAS output range at antenna port | −67 to −2 dBm, 0.5 dB res., ±2 dB | [3] |
| Over-the-air test distance (TCAS/DME) | 6 to 300 ft with supplied antenna | [3] |
| Mode S interrogation frequency range | 1029.900 to 1030.100 MHz, ±10 kHz | [3] |
| UAT transmit frequency | 978 MHz, ±10 kHz; BPFSK per RTCA DO-282B | [3] |
| DME reply frequency | 962 to 1213 MHz, ±10 kHz | [3] |
| DME range delay | 0 to 450.00 nmi, 0.01 nmi res. | [3] |
| DME range rate | 10 to 6500 kt | [3] |
| DME squitter PRF | 2700 Hz ±2%, distribution per ARINC 568 | [3] |
| VOR band | 108.00 to 117.95 MHz | [1] |
| SELCAL | 32 ARINC 714A tone frequencies | [1] |
Calibration requirements
Specifications apply after a 5-minute warm-up [3]. Calibration interval and service: follow VIAVI's documentation.
Documentation and manufacturer resources
- VIAVI AVX-10K Flight Line Test Set – product page
- VIAVI AVX-10K Flight Line Test Set data sheet (PDF)
- VIAVI AVX-10K Commercial Flight Line Test Set selection guide (PDF)
- VIAVI AVX-10K to IFR6000/IFR6015 comparison (PDF)
