Bird FlightHawk FH-AV-KIT Aviation RF Cable & Antenna Analyzer Kit

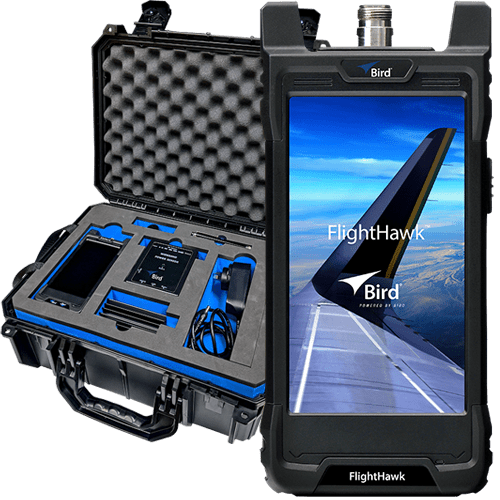

The Bird FlightHawk FH-AV-KIT is an aviation RF cable and antenna test kit built around a SiteHawk SK-6000-TC analyzer customised with aviation cable parameters, a 5017D-AV wideband power sensor and aircraft adapters [1][2]. Technicians use it to find RF cable, connector and antenna faults and reduce AOG time [1]. Novatelia supplies it by RFQ in Oman and on qualified GCC projects.
| Manufacturer | Bird |
|---|---|
| Model | FH-AV-KIT |
| Manufacturer part number | Not published here — confirmed at quotation |
| Product family | Cable and antenna analyzers |
| Primary category | Aircraft RF & Antenna Testing |
| Secondary categories | Avionics Test Equipment |
| Technology | FDR cable and antenna analysis |
| Aircraft systems | COM / NAV / surveillance antennas |
| Maintenance type | Line maintenance (ramp) |
| Customer types | Airline line maintenance, Avionics shop, Business aviation |
| Region | Oman; selected GCC projects |
| Commercial status | Request a quote (no public price) |
Primary applications
- Antenna VSWR test
- Distance-to-fault
- RF power
Key capabilities
- VSWR, return loss, cable loss and DTF [3]
- Automated VSWR testing with pass/fail [4]
- RF power with Bird power sensor [4]
- Adapters for N, BNC, TNC, UHF, SMA and ARINC 600 coax [2]
Technical specifications
Values below are copied from the manufacturer documentation cited; confirm against the current OEM data sheet before ordering.
| Parameter | Value | Source |
|---|---|---|
| Frequency range | 1 MHz – 6 GHz | [4] |
| Analyzer | Customised SiteHawk SK-6000-TC | [2] |
| Power sensor | 5017D-AV, 100 MHz – 1.3 GHz | [2] |
| Display | 1280 × 720 touch screen | [4] |
| Data points | 51 to 3201 per sweep | [4] |
| Storage | 16 GB internal flash | [4] |
| Adapters | N, BNC, TNC, UHF, SMA; ARINC 600 size 1 and 5 coax | [2] |
| Load | 25 W termination | [2] |
Calibration requirements
Calibrate per Bird documentation and your calibration programme.
Documentation and manufacturer resources
- Bird FlightHawk FH-AV-KIT data sheet (PDF)
- Bird FlightHawk RF test set manual 920-7003A004 (PDF)
- Bird SiteHawk aviation case study (PDF)
