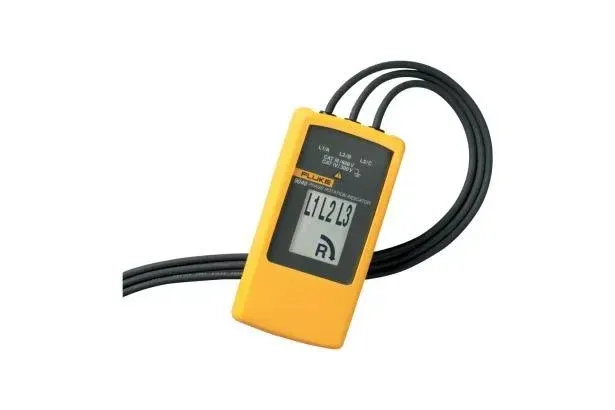

Key features 3 phase indication Indication of phase rotation Clear LCD display No battery required Product overview: Phase rotation indicator with high voltage capability for industrial applications The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets. Specifications: Technical Specifications Voltage Range 40-700 V Frequency Range 15-400 Hz Operating Timer Continuous Environmental Specifications Operating Temperature 0°C to 40°C Dust\/Water Resistance IP 40 Safety Specifications Electrical Safety EN 61010, EN 61557-7 Overvoltage category CAT III, 600 V CAT IV, 300V Mechanical and General Specifications Size 124 x 61 x 27 mm Weight 200 g Power supply From unit under test Manuals: 9040\/9040UK
- Part number
- 59-07-9040
- Brand
- Fluke
- Category
- Tools & Equipment
- Product type
- Test Equipment
Specifications
| Part number | 59-07-9040 |
|---|---|
| Brand | Fluke |
| Category | Tools & Equipment |
| Product type | Test Equipment |
Documents
Datasheet — 59-07-9040
Available on request; sent by email with your quotation.
Compatibility
Parts from the same Fluke family
Need to confirm compatibility with existing equipment? Send the models in your quote request or on WhatsApp and our engineers will check before you order.
