Overview

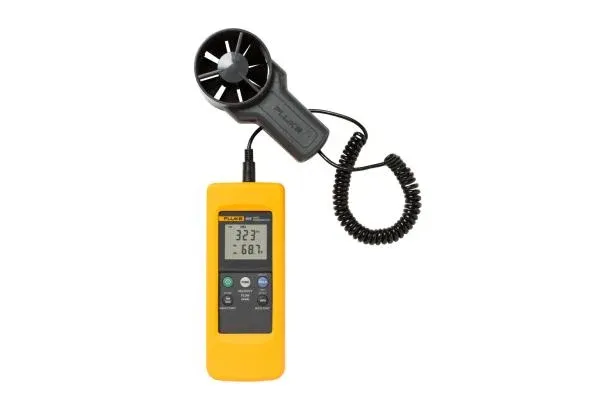

Key features Ability to measure wind speed in feet per minute or meters per second Data capture using one button and the ability to average multiple readings Min and Max alarm setting to alert the user when limits have been met Durable over mold housing to protect the unit from drops 1 M extension of sensor from display to ensure air flow is captured in hard to reach locations Product overview: The Fluke 925 is an economical and durable vane anemometer designed to measure wind speed, air flow and wind temperature conveniently. With a separate air flow sensor and display, the Fluke 925 provides the user the flexibility to measure air flow in a variety of locations. Vane anemometers are well suited to measure air flow in residential and commercial buildings as part of regular maintenance checks. Specifications: Wind speed measurement Range Resolution m\/s 0.40 to 25.00 m\/s 0.01 m\/s ft\/m 80 to 4900 ft\/m 1 ft\/m Air flow measurement Range Resolution CMS 0.01 to 0.01 (cubic meter\/second) 99.99 m3\/s 0.01 CFM (cubic foot\/minute) 1 to 9999 ft3\/m 1 Wind temperature measurement Range Resolution Wind temperature 0°C to 50°C 0.1°C Product specification * Display Dual-screen 4-digit (9999 points) LCD screen Measurement unit Wind speed: ft\/m; m\/s Air flow: CMS (m3\/s) and CFM (ft3\/m) (cubic foot\/minute) Wind temperature: °C and °F Data holding Lock the displayed readings Sensor Wind speed\/air flow sensor: conventional angular vane arm, lubricating ball bearing Wind temperature sensor: precision thermistor Minimum\/maximum value storage, recording and viewing the minimum reading and maximum reading Average reading storage Single point (2 hours at most) or multiple points (8 readings at most) Auto power-off Enter the sleep mode after 20 minutes (can be disabled) to save power Power supply 9V battery (high capacity alkaline battery) Battery life 100 hours Weight 363 g, including the battery and sensor Dimensions 181 × 71 × 38 mm Sensor head diameter 70 mm Manuals: 925

Part number

59-07-0925

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
