Overview

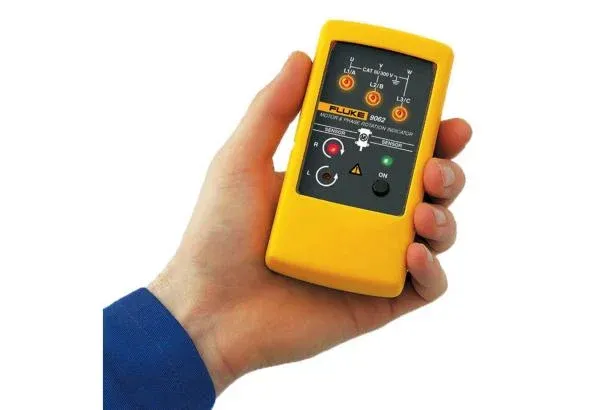

Key features 3 phase indication Indication of phase rotation Indication of motor rotation direction Contact free determination of the rotation direction of running motors Product overview: Unique phase rotation indicator with motor rotation ability The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets. Specifications: Technical specifications Voltage range Up to 400 V Phase display 120-400 V AC Frequency range 2-400 Hz Operating timer Continuous Environmental specifications Operating temperature 0 °C to 40 °C Operating altitude Up to 2000m Humidity (without condensation) 15% to 80% Dust\/water resistance IP 40 Safety specifications Electrical safety EN 61010, EN 61557-7 Overvoltage category CAT III, 300 V Mechanical and general specifications Size 124 x 61 x 27 mm Weight 1 x 9 V Batteries 1 x 9 V Manuals: 9062

Part number

59-07-9062

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
