Overview

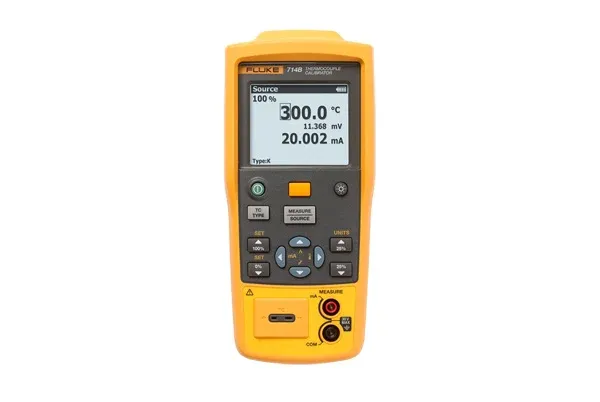

Key features Highly accurate, full featured easy-to-use, single-function thermocouple temperature calibrator Measures and simulates 17 thermocouple types and millivolts Measures 4 to 20 mA signals while simultaneously sourcing a temperature signal Comes with a magnetic hanging tool designed in for convenient hands-free operation Features configurable 0% and 100% source settings for quick 25% linearity checks Product overview: Fluke 714B Thermocouple Calibrator offers high accuracy thermocouple temperature calibration the easy way Fluke 714B is a handheld, battery-operated instrument that measures and sources a variety of thermocouple types and millivolts. Calibrates a linear thermocouple transmitter with the mV source function and measures mA while sourcing temperature. It also provides linear ramp and 25% step auto ramp functionality based on 0% and 100% settings. Put those capabilities together with its rugged construction and ease of use and you have an ideal test tool for temperature calibration professionals who want a highly accurate, single function thermocouple temperature calibrator Other useful features: Calibrates linear TC transmitter with mV source function Provides linear ramp and 25% step auto ramp based on 0% and 100% settings Dual inputs and backlit display for easy interpretation of measurements Remembers power down settings to easily restart tests when powered up Provides one-year and two-year specifications and traceable certification of calibration Specifications: General Specifications Maximum voltage applied between any terminal and earth ground or between any two terminals 30 V Operating temperature -10°C to 50°C Storage temperature -30°C to 60°C Operating altitude 2,000 m Storage altitude 12,000 m Relative humidity (% RH operating without condensation) Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation) Vibration requirements MIL-T-28800E, Class 2 Drop text requirements 1 m IP Rating IEC 60529: IP52 Electromagnetic environment IEC 61326-1, Portable Safety IEC 61010-1, Max 30 V to earth, Pollution Degree 2 Power supply 4 AA NEDA 1.5A IEC LR6 batteries Size (H x W x L) 52.5 x 84 x 188.5 mm Weight 515 g DC mA Measurement Resolution Range Accuracy (% of reading + counts) 0-24 mA 0.001 mA 0.010% + 2 A Temperature coefficient ±(0.002% of reading + 0.002% of range) \/°C ( 28°C) Millivolt Measurement and Source Resolution Range Accuracy (% of reading +counts) -10 mV to 75 mV 0.01 mV 0.015% + 10 A Temperature coefficient ±(0.002% of reading + 0.002% of range) \/°C ( 28°C) Data sheet: Fluke 712B\/714B

Part number

59-07-1714

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
