Overview

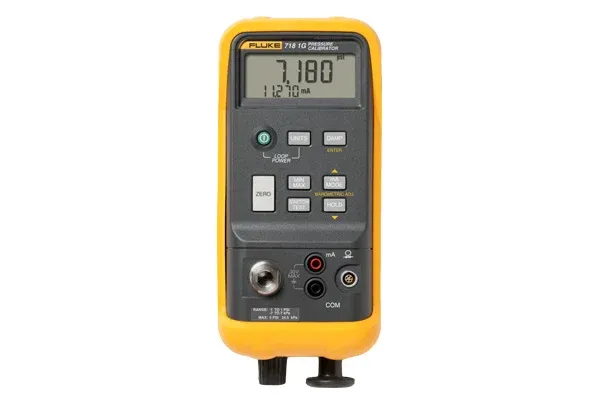

Key features Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device Integrated pump is easily cleaned when accidentally exposed to fluids that reduce cost of ownership and repairs and enables servicing the pump in the field Error % calculation for quicker pass/fail decision making in the field Best in class mA accuracy of 0.015% for better measurement confidence and workload coverage Min/Max/Hold to capture changing measurements Switch test feature for quicker and more accurate pressure switch testing New 1 and 300 psi pressure ranges mean fewer extra tools required 1, 30, 100 & 300 psi ranges now available Models 1G: -1 to 1 psi, (-68.9 mbar to 68.9 mbar, -6.89 to 6.89 kPa) 30G: -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa) 100G: -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) 300G: -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa ) Product overview: The complete solution to pressure calibration The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field. Specifications: Fluke 718 Series Measure pressure (Internal sensor) Accuracy 0.025% full scale Functions Zero, min\/max, hold, damp Dry air, non-corrosives only Fluke 718 1G Range -1 psi to +1 psi, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa) Resolution 0.0001 psi, 0.001 mbar, 0.0001 kPa Over pressure 5x Full Scale Functions Zero, Min, Max, Hold, Damp Fluke 718 30G Range -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa) Resolution 0.001 psi, 0.1 mbar, 0.01 kPa Over pressure 5x Full Scale Functions Zero, Min, Max, Hold, Damp Fluke 718 100G Range -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) Resolution 0.01 psi, 0.1 mbar, 0.01 kPa Over pressure 2x Full Scale Functions Zero, Min, Max, Hold, Damp Fluke 718 300G Range -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa) Resolution 0.01 psi, 1 mbar, 0.1 kPa Over pressure 375 psi 25 bar Functions Zero, Min, Max, Hold, Damp Fluke 718 series via 700 Series Pressure Modules Range 29 pressure modules, 0 – 1 inH20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs Resolution Per pressure module specs Accuracy To 0.025% of full span, per pressure module specs Functions Zero, Min, Max, Hold, Damp Media compatibility per pressure module specs Fluke 718 Series Via Built in Pump Range -12 psi or -850 mbar to full scale Supported Pressure Units; psi, inH20 (4°C), inH20 (20°C), cmH20 (4°C), cm Model: Fluke 718 1G Fluke 718 1G Pressure Calibrator -1 to 1 psi, (-68.9 mbar to 68.9 mbar, -6.89 to 6.89 kPa) Fluke 718 30G Fluke 718 30G Pressure Calibrator -12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa) Fluke 718 100G Fluke 718 100G Pressure Calibrator -12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) Fluke 718 300G Fluke 718 300G Pressure Calibrator -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa ) Manuals: 718

Part number

59-07-0718

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment

Documents
