Overview

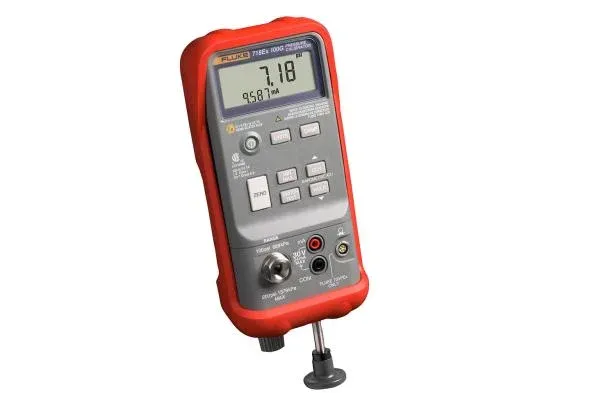

Key features ATEX II 1G Ex ia IIC T4 Compliant. Built-in pressure / vacuum hand pump, with fine adjust vernier and bleed valve. 30, 100, and 300 psi ranges (2, 7, and 20 bar) Pressure measurement to 0.05% of full span, using an internal pressure sensor. Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules. Wide range of selectable measurement units for pressure. Current measurement with 0.02% accuracy and 0.001 mA resolution. Pressure switch test function. Min-Max Hold functions. Compact size and weight. Simple, push-button user interface. Rugged and reliable, ideal for field use. Models 100G: 100 psi 300G: 300 psi Product overview: Pump Up the Pressure The Fluke 718Ex Intrinsically Safe Pressure Calibrator is a powerful intrinsically safe, self contained pressure calibrator for usage in explosion endangered areas. Specifications: Pressure Measurement Accuracy Fluke 718Ex 30G Range -830 mbar to 2 bar (internal sensor) Over pressure: 3x FS Resolution 0.0001 bar Accuracy 0.05% FS Functions Zero, Min, Max, Hold, Damp Fluke 718Ex 100G Range -830 mbar to 2 bar (internal sensor) Over pressure: 2x FS Resolution 0.001 bar Accuracy 0.05% FS Functions Zero, Min, Max, Hold, Damp Fluke 718Ex 300G Range -830 mbar to 20 bar (internal sensor) Over pressure: 375 psi, 25 bar Resolution 0.0001 bar Accuracy 0.05% FS Functions Zero, Min, Max, Hold, Damp Fluke 718Ex series Range Via pressure module connector 29 pressure modules, 2.5 mbar to 700 bar Over pressure per pressure module specs Resolution Per pressure module specs Accuracy To 0.025% of full span, per pressure module specs Functions Zero, Min, Max, Hold, Damp Source pressure, built in pump range -820 mbar to full scale For use with non-corrosive gasses. Supported Pressure Units psi, inH2O (4°C), inH2O (20°C), kPa, cmH2O (4°C), cmH2O (20°C), bar, mbar, kg\/cm2, mmHg, inHg Media compatibility per pressure module specs Technical Data Measure accuracy Range 0-24 mA Resolution 0.001 mA Accuracy 0.02% rdg ±2 counts Display LCD, 5 digit pressure and current Data sheet: 718Ex Intrinsically Safe Pressure Calibrator and Pressure Modules Manuals: 718Ex

Part number

WECL-fluke-718ex-intrinsically-safe-p

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
