Overview

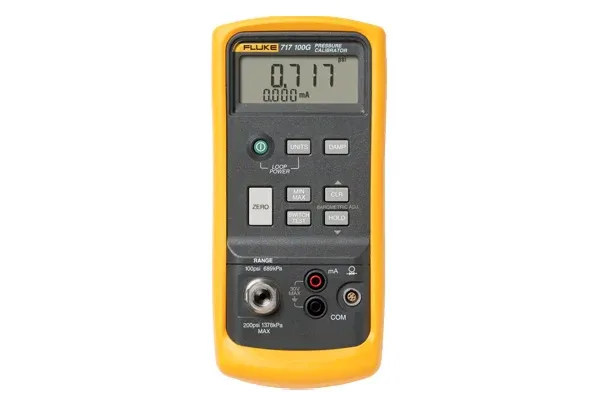

Key features Measure pressure, 0.05% of full scale with internal sensor up to 5000 psi/345 bar sensor (5000G model) Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24 V loop power Measure pressure to 10,000 psi/700 bar using one of 29 Fluke 700Pxx Pressure Modules 1/8 NPT female pressure fitting Compatible with non-corrosive Gases and liquids Select eleven different engineering units Zero, min, max, and hold functions Calibrate P/I instruments with simultaneous pressure and current measurement Pressure switch test function captures set, reset and Deadband values of a pressure switch Error % calculation of mA measurements for quick pass-fail decisions Long lasting battery life Holster features test lead storage Compatible with Toolpack magnetic hanging system New switch test Models 30G: 12 to 30 psi (-850 mbar to 2 bar, -85 to 207 kPa) 100G: 12 to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) 300G: 12 to 300 psi, (-850 mbar to 20 bar, -85 to 2068.4 kPa ) 1500G: 0 to 1500 psi, (0 bar to 103.4 bar, 0 to 10342 kPa ) Product overview: The Fluke 717 Pressure Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 750 Series Documenting Process Calibrators, the Fluke 717 Pressure Calibrator is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes. The Fluke 717 Pressure Calibrator is compatible with Fluke 700Pxx differential, gauge and absolute pressure modules to increase functionality. Specifications: Measurement Accuracy (Pressure) 717 Series Measure Pressure (Internal sensor) Accuracy 0.05% full scale Functions Zero, min, max, hold, damp Note gasses \/ liquids (non-corrosive) Fluke 717 1G Range -1 to 1 psi, (-68.9 mbar to 68.9 mbar, -83 to 6.89 kPa) Resolution 0.0001 psi, 0.001 mbar, 0.0001 kPa Over pressure 5 x full scale Fluke 717 30G Range -12 to 30 psi, (-850 mbar to 2 bar, -83 to 206.84 kPa) Resolution 0.001 psi, 0.1 mbar, 0.01 kPa Over Pressure 2 x full scale Fluke 717 100G Range -12 to 100 psi, (-850 mbar to 7 bar, -83 to 689.48 kPa) Resolution 0.01 psi, 0.1 mbar, 0.01 kPa Over pressure 2 x full scale Fluke 717 300G Range -12 to 300 psi, (-850 mbar to 20 bar, -83 to 2068.42 kPa) Resolution 0.01 psi, 1 mbar, 0.1 kPa Over pressure 375 psi, 25 bar Fluke 717 500G Range 0 to 500 psi, (0 mbar to 34,7 bar, 0 to 3447.38 kPa) Resolution 0.01 psi, 1 mbar, 0.1 kPa Over pressure 2 x full scale Fluke 717 1000G Range 0 to 1000 psi, (0 mbar to 69 bar, 0 to 6894.76 kPa) Resolution 0.1 psi, 1 mbar, 0.1 kPa Over pressure 2 x full scale Fluke 717 1500G Range 0 to 1500 psi, (0 bar to 103.4 bar, 0 to 10342 kPa) Resolution 0.1 psi, 0.01 mbar, 1 kPa Over pressure 2 x full scale Fluke 717 3000G Range 0 to 3000 psi, (0 bar to 207 bar, 0 to 20684.27 kPa) Resolution 0.1 psi, 0.01 bar, 1 kPa Models: Fluke 717 1G Fluke 717 1G Pressure Calibrator 1 to 1 psi, (-68.9 mbar to 68.9 mbar, -6.89 to 6.89 kPa) Fluke 717 30G (Product Code: 59-07-0717) Fluke 717 30G Pressure Calibrator 12 to 30 psi (-850 mbar to 2 bar, -85 to 207 kPa) Fluke 717 100G (Product Code: 59-07-3717) Fluke 717 100G Pressure Calibrator 12 to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa) Fluke 717 300G (Product Code: 59-07-2717) Fluke 717 300G Pressure Calibrator 12 to 300 psi, (-850 mbar to 20 bar, -85 to 2068.4 kPa ) Fluke 717 500G Fluke 717 500G Pressure Calibrator 0 to 500 psi, (0 mbar to 34.7 bar, 0 to 3447.4 kPa ) Fluke 717 1000G Fluke 717 1000G Pressure Calibrator 0 to 1000 psi, (0 mbar to 69 bar, 0 to 6894.8 kPa ) Fluke 717 1500G (Product Code: 59-07-5717) Fluke 717 1500G Pressure Calibrator 0 to 1500 psi, (0 bar to 103.4 bar, 0 to 10342 kPa ) Fluke 717 3000G Fluke 717 3000G Pressure Calibrator 0 to 3000 psi, (0 bar to 207 bar, 0 to 20684 kPa) Fluke 717 5000G Fluke 717 5000G Pressure Calibrator 0 to 5000 psi, (0 bar to 345 bar, 0 to 34474 kPa) Manuals: 717

Part number

59-07-0717

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
