Overview

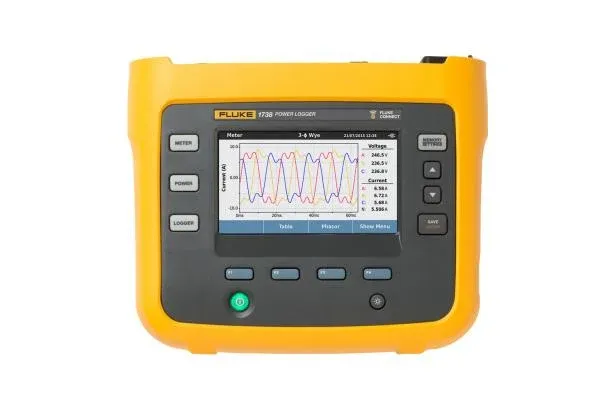

Key features Three-phase advanced Fluke Connect compatible-power logger for making critical power quality and energy decisions in real-time Automatically captures and logs voltage, current, power, harmonics and associated power quality values. Provides the highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream Automatically logs all measured values and stores more than 20 separate logging sessions Product overview: Comprehensive power quality and energy studies - get the data you need to make critical decisions in real-time The Fluke 1738 Three-Phase Advanced Power Logger built with Fluke Connect®mobile app and desktop software compatibility gives you the data you need to make critical power quality and energy decisions in real-time. Like the Fluke 1736 Power Logger, the 1738 Advanced Power Logger automatically captures and logs over 500 power quality parameters while also allowing you to troubleshoot more advanced power quality issues. Perform advanced analysis with an enhanced Power Quality Health Summary (EN50160) function that provides you with fast insight into overall electrical system health. The Power Quality Health Summary is based on detailed power quality data including viewable event waveform captures so you have even more visibility into the data you need to optimize system reliability and savings. An optimized user interface, flexible current probes, and an intelligent measurement verification function that allows you to reduce measurement errors by digitally verifying and correcting common connection errors makes setup easier than ever and reduces measurement uncertainty. Access and share data remotely with your team via the Fluke Connect® app, or access your logger through your facilities WiFi infrastructure so you can maintain safer working distances and make critical decisions in real-time, reducing the need for protective equipment, site visits and check-ins. You can also quickly and easily chart and graph measurements to help identify issues and create detailed reports with the included Fluke Energy Analyze Plus software package. Optionally, you can create IEEE519 Reports giving you more insight into harmonic levels, voltage and current distortion, and load current (license required). The Fluke 1738 is the ideal test tool for conducting energy studies and more advanced power quality logging. Other useful features: Presents data locally on the logger, on Specifications: Specifications Accuracy Parameter Range Resolution Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale) Voltage 1000 V 0.1 V ±(0.2% + 0.01%) Current: Direct input i17xx-flex 1500 12\" 150 A 0.1 A ±(1% + 0.02%) 1500 A 1:00 AM ±(1% + 0.02%) i17xx-flex 3000 24\" 300 A 1:00 AM ±(1% + 0.03%) 3000 A ####### ±(1% + 0.03%) i17xx-flex 6000 36\" 600 A 1:00 AM ±(1.5% + 0.03%) 6000 A ####### ±(1.5% + 0.03%) i40s-EL clamp 4:00 AM 1 mA ±(0.7% + 0.02%) 40 A 10 mA ±(0.7% + 0.02%) Frequency 42.5 Hz to 69 Hz 0.01 Hz ±(0.1%) Auxillary input ±10 V dc 0.1 mV ±(0.2% + 0.02%) Voltage min\/max 1000 V 0.1 V ±(1% + 0.1%) Current min\/max Defined by accessory Defined by accessory ±(5% + 0.2%) THD on voltage 1000% 0.10% ±0.5 THD on current 1000% 0.10% ±0.5 Voltage harmonics 2nd to 50th 1000 V 0.1 V 10 V: ±5% of reading Current harmonics 2nd to 50th Defined by accessory Defined by accessory 3% of current ra Manuals: 1736\/1738

Part number

59-07-1738

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
