Overview

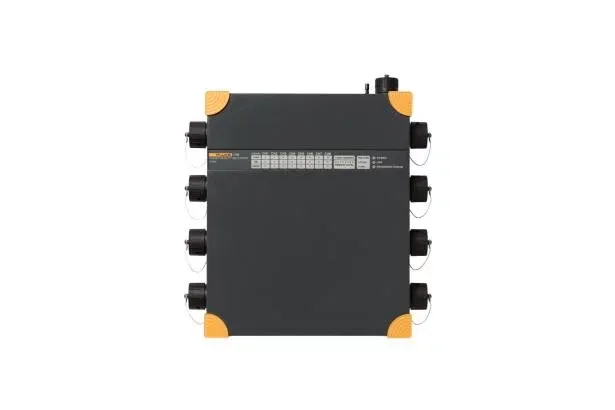

Key features Three-phase power quality recorder fully compliant to IEC 61000-4-30 Class-A and consistent with compliance testing Uses GPS time synchronization to correlate data with events or datasets from other instruments with precision Offers flexible and fully configurable thresholds and scale factors to allow users to define detailed criteria for detecting and recording disturbances Product overview: Class-A compliance for the most demanding power quality tests The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium- and low-voltage networks. The Fluke 1760 provides exceptional flexibility with the ability to customize thresholds, algorithms, and measurement selections. The 1760 power recorder captures the most comprehensive details on user-selected parameters; the supplied PQAnalyze application software enables users uses the in depth measurement and produce sophisticated analysis and reports. Applications Detailed disturbance analysis – Perform high-speed transient analysis and uncover root cause of equipment malfunction for later mitigation and predictive maintenance. The fast transient option, with its 6000 V measurement range, allows capture of very short impulses such as capacitor switching and lightning strikes. Class-A quality-of-service compliance – Validate incoming power quality at the service entrance. Thanks to Class A compliance, the Fluke 1760 allows undisputable verification. The Fluke 1760 Class A compliance has been independently verified at a world leading power quality laboratory. Event correlation at multiple locations – Utilizing GPS time synchronization, users can quickly detect where a fault occurred first, either inside or outside the facility. The accuracy of this time-stamping enables users with multiple 1760s on their network to understand the propagation of events across the network. Galvanic separation and DC coupling – Allows complete measurements on dissimilar power systems. For example troubleshoot UPS systems by simultaneously recording the battery voltage and power output. Power quality and power load studies – Assess baseline power quality to validate compatibility with critical systems before installation and verify e Specifications: Overview of Measurement Functions Statistical evaluation Power quality statistics according to EN50160 and DISDIP tables like ITIC, CEBEMA, ANSI Event list Dips, swells and interruptions are detected and stored in the event list. Also any trigger which fires generates an event added to this list. The Event list shows the exact time when the event occurred as well as the duration and magnitude. Sorting by several attributes of these events is possible to select one for further root cause analysis. RMS values, transients and fast transients can be stored if a trigger fires Continuous recording Fluke 1760 records rms values together with corresponding minimum and maximum values for: Voltage Current Power P, Q, S Power Factor kWh Flicker Unbalance Frequency Harmonics\/Interharmonics continuously with the following time aggregations: Day, 10 min, Free Interval, e.g.: 15 min, 2 h Triggered recordings rms Aggregation time is adjustable between 10 ms (1\/2 cycle), 20 ms (1 cycle), 200 ms (10\/12 cycles) or 3 sec (150\/180 cycles). Calculating rms values, Harmonics and Interharmonics is performed synchronous to the power frequency. Basic aggregation for harmonics and interharmonics is 200 ms Sample rate is 10.24 kHz for all 8 channels Mains signalling Phases and N-conductor, Voltage and current Online mode Variable refresh rate Data sheet: Fluke 1760 Power Recorder Datasheet Manuals: 1760

Part number

WECL-fluke-1760-three-phase-energy-lo

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
