Aircraft EWIS Testing Guide

This guide explains what the electrical wiring interconnection system (EWIS) includes and which tests MRO and harness shops use to prove it, citing the FAA and test-equipment manufacturers.

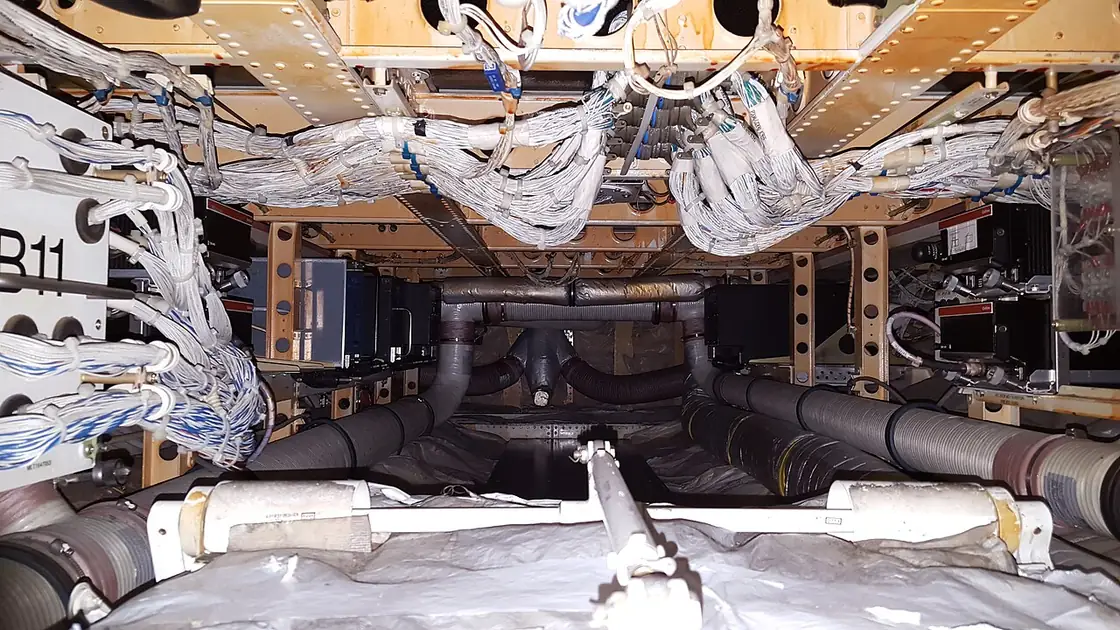

What EWIS is

• 14 CFR 25.1701 defines EWIS as wires, connectors, terminals, splices, clamps and other devices used to carry electrical energy between two or more termination points ^[1].
• FAA AC 25.1701-1 gives guidance on EWIS design, installation, maintenance and inspection ^[2].

Core tests

• Continuity and shorts, often with 4-wire Kelvin resistance ^[3][4].
• Insulation resistance and dielectric withstand (hi-pot) ^[3][5].
• Function tests of relays, sensors and actuators ^[4].
• Bond and loop resistance; on fuelled aircraft only with intrinsically safe tools ^[6].

Choosing a tester

• Point count, test voltage and format (bench, mobile, distributed) ^[5].
• Data import from harness wire lists ^[3].
• AMM-specified tools for particular tasks ^[7].
• Crimp and termination quality: see the crimp tool guide and DMC tools ^[8].
