Aircraft crimp tool selection guide

This guide shows how wiring shops pick the right crimp tool frame and positioner for an aircraft connector contact, and how to keep the tool verified. It uses DMC documentation and FAA AC 43.13-1B.

Start from the contact

• The aircraft wiring documentation names the contact; cross-reference it to an AS22520 tool and positioner ^[1].
• Wire size decides the frame: AF8 for 12–26 AWG ^[2], AFM8 for 20–32 AWG ^[3].

Positioners and turrets

• The AF8 must be fitted with a turret head, positioner or adjustable head before use ^[2].
• Each positioner data plate lists contacts and selector settings ^[3].

Verification and quality

• Gauge tools periodically with the M22520/3-1 Go/No-Go gauge (DMC G125) ^[2].
• Buy through traceable channels; DMC has warned about non-qualified copies ^[4].
• General wiring practices: FAA AC 43.13-1B, Chapter 11 ^[5].

Products referenced in this guide

• DMC – Daniels Manufacturing CorporationAircraft Wiring & Connector ToolsRFQ



  DMC AF8 8-Indent Crimp Tool (M22520/1-01)

  Model: AF8

  • 8-impression crimp for maximum tensile strength on closed-barrel contacts
  • Ratchet controls the cycle in both handle directions
  • 8-position selector knob, lockable with pin or safety wire
  • Over a thousand turret heads available

  Status: Request a quote · calibration certificate on request

• DMC – Daniels Manufacturing CorporationAircraft Wiring & Connector ToolsRFQ



  DMC AFM8 Miniature 8-Indent Crimp Tool (M22520/2-01)

  Model: AFM8

  • Mil-standard 8-impression crimp
  • Cycle-controlled precision ratchet
  • Built-in 8-step selector knob
  • Interchangeable positioners with data plate showing contacts and selector position

  Status: Request a quote · calibration certificate on request

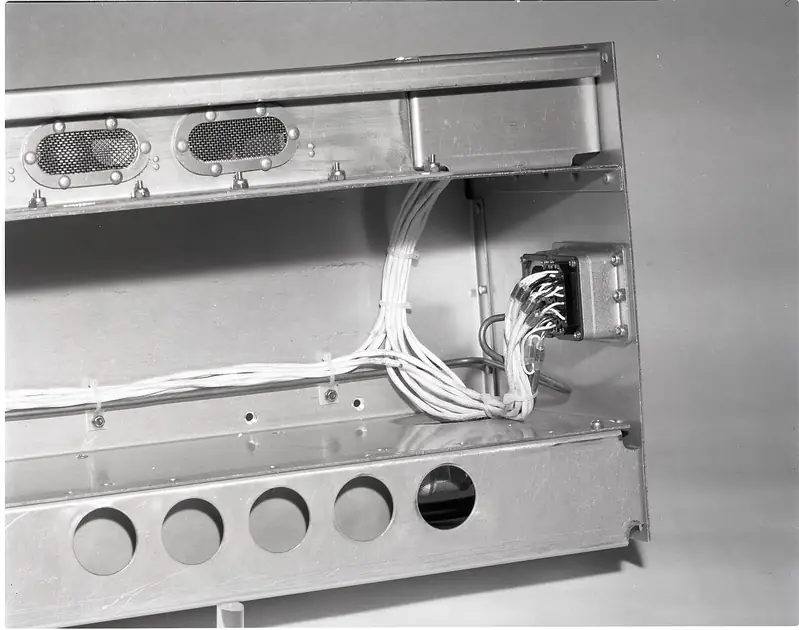

Related category

Aircraft Wiring & Connector Tools · All aviation guides

Frequently asked questions

What is M22520/1-01?

The military part number cross-referenced to the DMC AF8 ^[1].

How do I check a crimp tool is in tolerance?

Use the Go/No-Go gauge at the selector setting DMC specifies ^[2][3].

This guide is general information. It does not replace the aircraft maintenance manual, the operator's approved procedures or the rules of the competent civil aviation authority.
