Overview

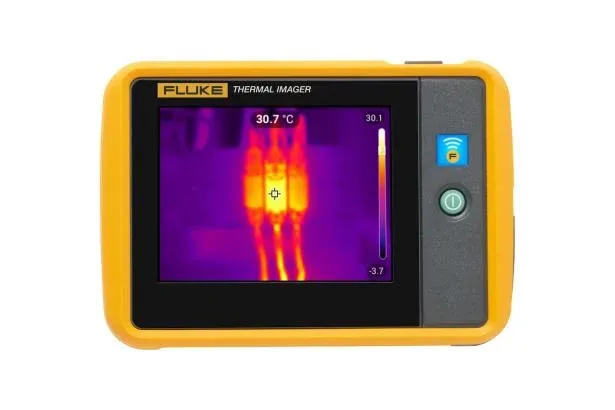

Key features Get the infrared troubleshooting power you need. Automatically organize and file thermal images with Fluke Connect Asset Tagging Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels) 3.5 LCD touchscreen display for easy troubleshooting -20 XC to +400 XC temperature measurement range models Six color palettes Can withstand drop up to 1 meter IP 54 enclosure rating Subject to Export Control Product overview: Portable thermal camera for industrial inspection In the right place. At the right time. With the right tool. The bigger the problem, the faster you need to solve it. The Fluke Pocket Thermal Camera puts the power to minimize downtime in everyones hands. The first line of defense for easy troubleshooting. Stop fighting fires on the job, start preventing them. On the job, because it does the job. A camera small enough to carry every day without worry. Always at hand. Stands up to dirt and water. Can survive a 1-meter drop. Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment, machinery and other assets. Automatically save your thermal images to the right folders. With Fluke Connect Asset Tagging you eliminate the tedium of sorting and organizing your infrared images. By simply scanning your assets QR code or barcode, your infrared image and all of your date and time stamped information will be stored to your predefined folders. Send via WiFi or automatically upload once you connect to the network or computer via USB. It's about time. Now you can more efficiently save, find and report on issues before they become problems. Get your preferred level of infrared every time. The 3.5 LCD touchscreen offers IR-Fusion? to blend a visible light image with an infrared image to more easily locate problems. Simply slide your finger across the screen to adjust the setting. Specifications: Key Features IFOV (spatial resolution) 7.6 mRad Infrared resolution 120 x 90 (10,800 pixels) Field of view 50X H x 38X V Distance to spot 130:1 Temperature measurement range (not calibrated below -10 XC) -20 XC to +400 XC Focus system Fixed focus, minimum focus distance 22.8 cm USB Mini USB used to transfer image to PC Wifi Yes Image quality IR-Fusion technology Yes, adds the context of the visible details to your infrared image AutoBlend mode Continuous 0% to 100% Touchscreen display 3.5 (landscape), 320 x 240 LCD Rugged, ergonomic design Yes Thermal sensitivity (NETD) 60 mK Frame rate 9 Hz Data storage and image capture Memory ? 2GB internal flash memory Image capture, review, save mechanism One-handed image capture, review, and save capability Image file formats Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files Software Fluke Connect? desktop softwareXfull analysis and reporting software with access to the Fluke Connect system Export file formats with software JPG, IS2 Measurement range -20 XC to +400 XC and -20 XC to +150 XC models Battery Batteries (rechargable) Internal rechargeable lithium ion battery Battery life ? 2 hours continuous (without WiFi) Battery charging time ? 1.5 hours Battery charging system Mini USB cord from product to PC AC operation With separate AC to USB adapter. Not included in box. Power saving Automatic Shutdown: 5, 10, 15 and 20 minutes or never Temperature measurement Temperature measurement range (not calibrated below -10 XC) -20 XC to +400 XC and -20 XC to +150 XC models Accuracy Target temp at or over 0 XC: Accuracy: 2 XC or 2% On-screen emissivity correction Yes On-screen reflected background temperature compensation Yes Color palettes Standard palettes 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale General specifications Infrared spectral band 8 gm to 14 gm (long wave) Operating temperature -10 XC to +50 XC (14 XF Data sheet: PTi120 Pocket Thermal Imager Manuals: Fluke PTi120

Part number

59-28-1120

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment

Documents
