Overview

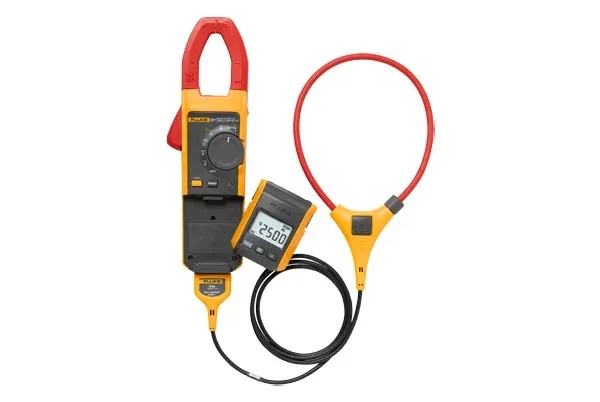

Key features Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy The removable magnetic display can be conveniently mounted where it is easily seen iFlex® Flexible Current Probe expands the measurement range to 2500 A AC CAT IV 600 V, CAT III 1000 V Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it Ergonomic design fits in your hand and can be used while wearing protective equipment Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement Soft carrying case Product overview: What Once Took Two People, Now Takes One Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings. The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires. Specifications: Electrical Specifications AC Current via Jaw Range 999.9 A Resolution 0.1 A Accuracy 2% ± 5 digits (10-100 Hz) 5% ± 5 digits (100-500 Hz) Crest Factor (50\/60 Hz) 3 @ 500 A 2.5 @ 600 A 1.42 @ 1000 A Add 2% for C.F. > 2 AC Current via Flexible Current Probe Range 999.9 A \/ 2500 A (45 Hz – 500 Hz) Resolution 0.1 A \/ 1 A Accuracy 3% ± 5 digits Crest Factor (50\/60 Hz) 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2 DC Current Range 999.9 A Resolution 0.1 A Accuracy 2% ± 5 digits AC Voltage Range 600 V \/1000 V Resolution 0.1 V \/ 1 V Accuracy 1.5% ± 5 digits (20 – 500 Hz) DC Voltage Range 600.0 V \/1000 V Resolution 0.1 V \/ 1 V Accuracy 1% ± 5 digits Frequency – Via Jaw Range 5.0 – 500.0 Hz Resolution 0.1 Hz Accuracy 0.5% ± 5 digits Trigger Level 5 – 10 Hz, 10 A 10 – 100 Hz, 5 A 100 – 500 Hz, 10 A Frequency via Flexible Current Probe Range 5.0 to 500.0 Hz Resolution 0.1 Hz Accuracy 0.5% ± 5 digits Trigger Level 5 to 20 Hz, 25 A Data sheet: 370 FC Clamps Data Sheet_6005995_13461, English Manuals: 381

Part number

59-07-0381

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
