Overview

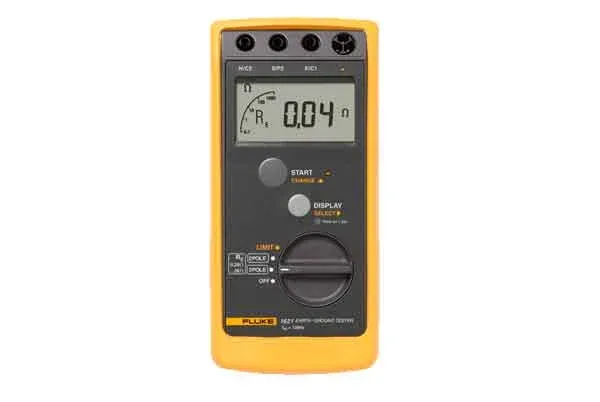

Key features Easily capture values with single-button operation 3-pole Fall-of-Potential earth testing for basic measurements 2-pole resistance measurements for added versatility Ensure accurate measurements with automatic noise voltage detection Hazardous voltage warning offers increased user protection Clearly read and record data with a large, backlit display Rugged holster and design for tough work environments Portable size allows for easy transportation Instantly be alerted to measurements outside of your set limit, when you use the adjustable limit setting 600 V Cat II Product overview: The Fluke 1621 is an easy-to-use earth ground tester. For ground resistance testing, the 1621 is the first line of defense in detecting reliable ground connections. The unit features basic ground testing methods including 3-pole Fall-of-Potential as well as 2-pole ground resistance tests. Its convenient size, rugged holster, and large, clear LCD display make it an ideal field earth ground tester, for most electrical grounding work environments. With a simple user interface and intuitive functionality, the Fluke 1621 is a handy grounding tool for electrical contractors, utility test engineers, and earth ground specialists. Specifications: General Specifications Measuring functions 3-pole earth ground resistance, 2-pole ac resistance of a conductor, Interference voltage Intrinsic error Refers to the reference temperature range and is guaranteed for one year Measuring rate 2 measurements\/second Battery1 One 9 volt alkaline (LR61) Battery condition LO-BAT is displayed if voltage drops below 6.5 V Voltages Between jacks H\/C2 and E\/C1 250 Veff maximum (effective voltage) Between jacks S\/P2 and E\/C1 250 Veff maximum Climatic class VDE\/VDI 3540 RZ (conforming to KWG as per DIN 40040, 4\/87) Temperature performance2 Working -10°C to +50°C (+14°F to +122°F) Operating 0°C to +35°C (+32°F to +95°F) Storage -20°C to +60°C (+68°F to +140°F) Reference +23°C ±2°C (+73°F ±4°F) Temperature coefficient ±0.1% of range per degree Kelvin Safety IEC\/EN 61010-1, 600 V CAT II, pollution degree 2 Dimensions 113 x 54 x 216 mm (4.5 x 2.1 x 8.5 in), including holster Weight 850 g (1.9 lb), including standard accessories, volume approximately 600 cm3 Electrical Specifications Maximum deviations E1 Influence factor Position E1 Deviation influence 0% E2 Influence factor Supply voltage E2 Deviation influence 0% E3 Influence factor Temperature E3 E3 Deviation influence 2.30% Data sheet: DATA SHEET FOR FLUKE 1621 Manuals: 1621

Part number

59-07-1621

Brand

Fluke

Category

Tools & Equipment

Product type

Test Equipment
