Overview

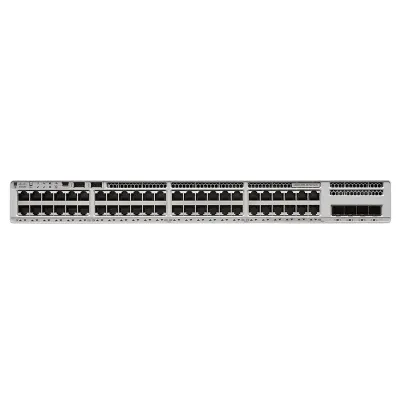

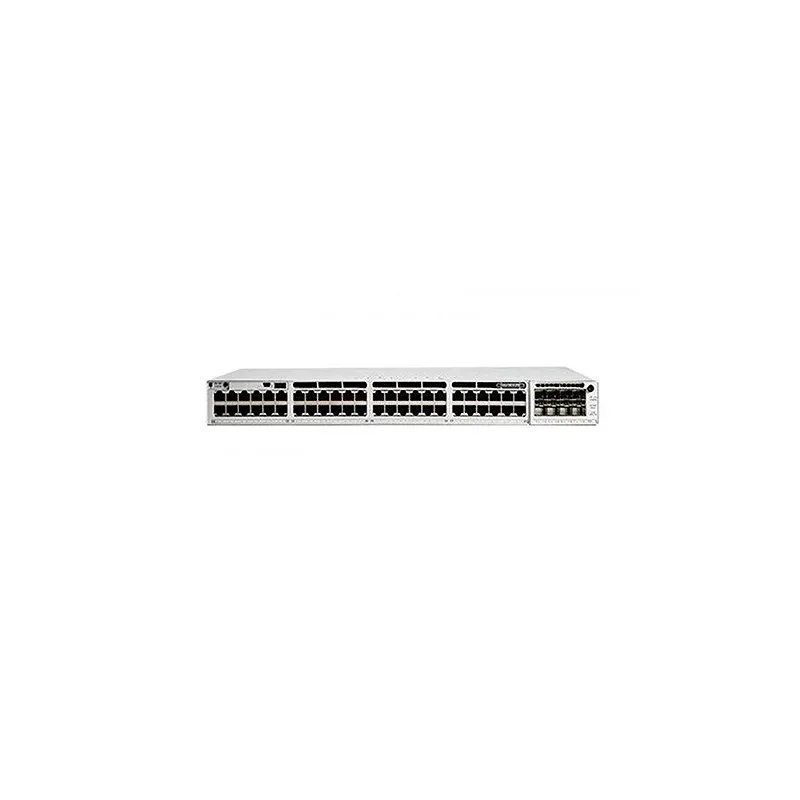

Cisco Catalyst (C9300-48P-E) by Cisco, listed under Managed Switches. Novatelia sources this part for projects in Oman and the GCC; price, lead time and warranty are confirmed in a written quotation.
- Part number
- C9300-48P-E
- Brand
- Cisco
- DRAM
- 8GB
- Flash
- 16GB
- Model
- C9300-48P-E
- VLAN IDs
- 4000
Specifications
| Part number | C9300-48P-E |
|---|---|
| Brand | Cisco |
| DRAM | 8GB |
| Flash | 16GB |
| Model | C9300-48P-E |
| VLAN IDs | 4000 |
| Dimensions | 1.73" x 17.5" x 17.5" |
| Jumbo frames | 9198 bytes |
| Forwarding rate | 154.76 Mpps |
| ACL scale entries | 5120 |
| Qo S scale entries | 5120 |
| Stacking bandwidth | 480 Gbps |
| Switching capacity | 256Gbps |
| Available Po E power | 437W |
| Default power supply | PWR-C1-715WAC-P/2 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| Default AC power supply | 715W AC |
| Multicast routing scale | 8000 |
| Wireless bandwidth per switch | Up to 96 Gbps on 48-port Gigabit Ethernet model |
| Mean time between failures (hours) | 299,000 |
| Total routed ports per 9300 Series stack | 208 |
| Total 10/100/1000 or Multigigabit copper ports | 48 POE+ |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000"direct routes) |
| Category | Network Infrastructure |
| Product type | Managed Switches |
Documents
Datasheet — C9300-48P-E
Available on request; sent by email with your quotation.
Compatibility
Parts from the same Cisco family
Need to confirm compatibility with existing equipment? Send the models in your quote request or on WhatsApp and our engineers will check before you order.
