Overview

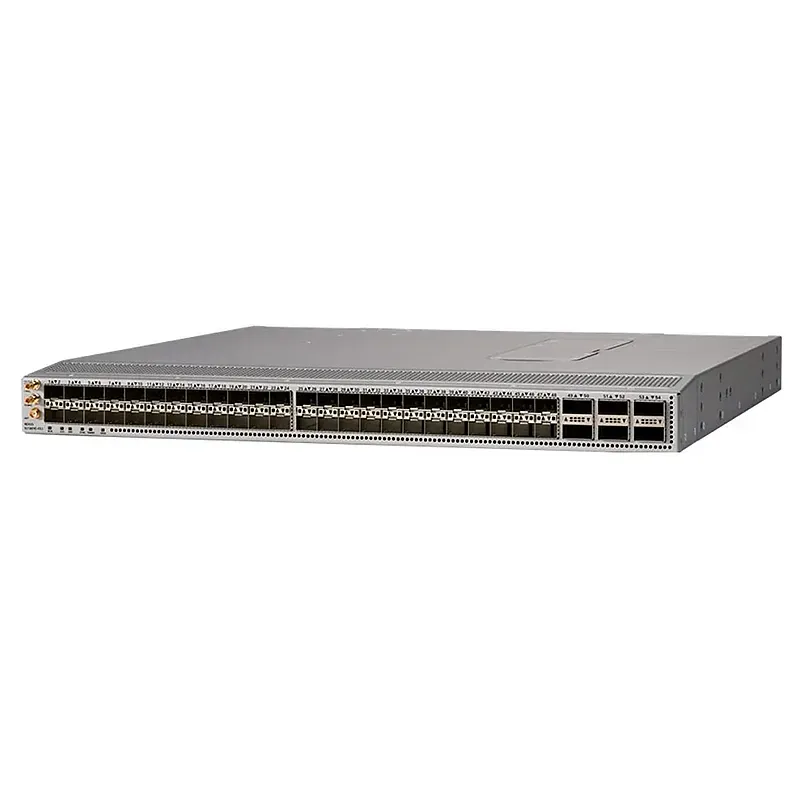

Cisco Nexus (N9K-C93180YC-FX) by Cisco, listed under Managed Switches. Novatelia sources this part for projects in Oman and the GCC; price, lead time and warranty are confirmed in a written quotation.
- Part number
- N9K-C93180YC-FX
- Brand
- Cisco
- CPU
- 6 cores
- MTBF
- 238,470 hours
- Model
- N9K-C93180YC-FX
- Airflow
- Port-side"take and exhaust
Specifications
| Part number | N9K-C93180YC-FX |
|---|---|
| Brand | Cisco |
| CPU | 6 cores |
| MTBF | 238,470 hours |
| Model | N9K-C93180YC-FX |
| Airflow | Port-side"take and exhaust |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Acoustics | 57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed |
| SSD drive | 128GB |
| System buffer | 40MB |
| System memory | Up to 32 GB |
| Frequency (AC) | 50 to 60 Hz |
| Management ports | 1 RJ-45 port, L1 and L2 ports are unused |
| Input voltage (AC) | 100 to 240V |
| Input voltage (DC) | C48 to C60V |
| Operating temperature | 32 to 104F (0 to 40C) |
| Typical power (AC/DC) | 260W |
| Maximum power (AC/DC)* | 425W |
| Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Downlink supported speeds | 1/10/25-Gbps Ethernet, 16/32-Gbps Fibre Channel |
| Nonoperating (storage) temperature | C40 to 158F (C40 to 70C) |
| Input voltage (High-Voltage AC [HVAC]) | 200 to 277V |
| Category | Network Infrastructure |
| Product type | Managed Switches |
Documents
Datasheet — N9K-C93180YC-FX
Available on request; sent by email with your quotation.
Compatibility
Parts from the same Cisco family
Need to confirm compatibility with existing equipment? Send the models in your quote request or on WhatsApp and our engineers will check before you order.
