Overview

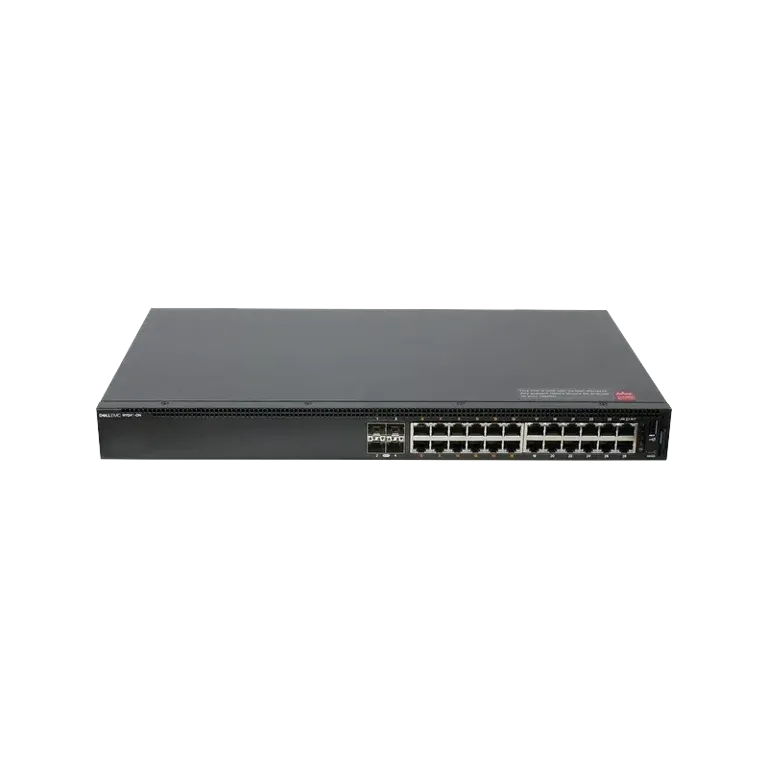

The Dell N1124P-ON is a 24-Port PoE Switch listed in the Network Switches section of the Enterprise Networking Systems catalog. Key listed specifications: Form Factor: Rack-mountable; Quantity of Network Ports: 24; Ethernet Standard: Gigabit Ethernet,10 Gigabit Ethernet; Supported Layer Standard: Layer 2; Manageable: Yes. The full specification table is shown on this page. Price, lead time and warranty are confirmed by Novatelia in a written quotation; send the part number with your request.
- Part number
- N1124P-ON
- Brand
- Dell
- Model
- N1124P-ON
- USB Port
- Yes
- Use Case
- Access Switch
- Manageable
- Yes
Specifications
| Part number | N1124P-ON |
|---|---|
| Brand | Dell |
| Model | N1124P-ON |
| USB Port | Yes |
| Use Case | Access Switch |
| Manageable | Yes |
| Po E Budget | 190 Watts |
| Form Factor | Rack-mountable |
| Uplink Port | Yes |
| Power Rating | 250 Watts |
| Product Line | PowerSwitch |
| Product Type | PoE Switch |
| Installed PSU | 1 |
| Stacking Port | Yes |
| Media Standard | Optical Fiber,Twisted Pair |
| Product Series | N1100 |
| Supported Rack | 1U |
| Source of Power | Power Supply,PoE |
| Airflow Direction | Front-to-Back Airflow |
| Ethernet Standard | Gigabit Ethernet,10 Gigabit Ethernet |
| Modular Expansion | Yes |
| POE/POE+ Supports | PoE+ |
| Technology Standard | 10GBase-X,10/100/1000Base-T |
| Compliance Standards | RoHS,EU WEEE,REACH |
| Quantity of SFP+ Slots | 4 |
| Console Management Port | Yes |
| Expansion Slots Details | SFP+ |
| Supported Layer Standard | Layer 2 |
| Quantity of Network Ports | 24 |
| MAC Address Table Capacity | 16000 MAC Addresses |
| Quantity of Expansion Slots | 4 |
| Quantity of Fixed Ports/Expansion Slots | 28 |
| Category | Network Switches |
Documents
Datasheet — N1124P-ON
Available on request; sent by email with your quotation.
Compatibility
- Form Factor
- Rack-mountable
- Media Standard
- Optical Fiber,Twisted Pair
- Ethernet Standard
- Gigabit Ethernet,10 Gigabit Ethernet
- Technology Standard
- 10GBase-X,10/100/1000Base-T
- Compliance Standards
- RoHS,EU WEEE,REACH
- Supported Layer Standard
- Layer 2
Parts from the same Dell family
Need to confirm compatibility with existing equipment? Send the models in your quote request or on WhatsApp and our engineers will check before you order.
Frequently asked questions
- What is the Dell N1124P-ON?
- Dell N1124P-ON 24-Port PoE Switch is listed in the Network Switches section of the Enterprise Networking Systems catalog as a PoE Switch. Manufacturer: Dell. Part number: N1124P-ON.
- What are the main specifications of the N1124P-ON?
- Model: N1124P-ON; USB Port: Yes; Use Case: Access Switch; Manageable: Yes; Po E Budget: 190 Watts. The full list is in the Specifications tab.
- How can I request a quote for the N1124P-ON?
- Use the Request a quote form on this page, add the part to your RFQ list, or send part number N1124P-ON on WhatsApp. Price, lead time and warranty are confirmed in a written quotation.
