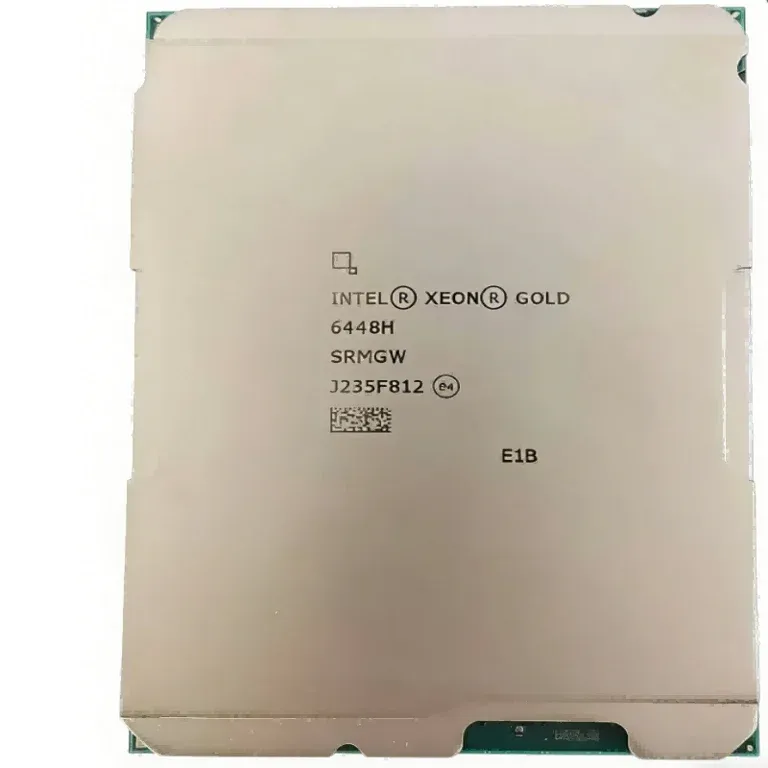

HPE
Intel Xeon
SKU / Part NV-EP-2632
IT & Computing Equipment / Servers
- Catalog family: IT & Computing Equipment / Servers
- Part number / SKU: NV-EP-2632
- Manufacturer: HPE
Intel Xeon SKU / Model: P68585-B21 Brand: HPE Technical specifications: TDP: 250 W (configurable down to 225 W / 205 W via Intel Speed Select Technology) UPI: 32 UPI links at 16 GT/s for high-speed inter-processor communication PCIe: PCI Express 5.0; up to 80 lanes available Cache: 60 MB L3 cache; 2 MB L2 cache per core; 80 KB L1 cache per core Socket: FCLGA4677 T_CASE: 83 °C; DTS Max 98 °C Launch Date: Q1 2023 Memory Type: DDR5-4800 MT/s (1DPC); DDR5-4400 MT/s (2DPC); ECC memory supported Package Size: 77.5 mm x 51.5 mm Base Frequency: 2.40 GHz Memory Support: Up to 4 TB maximum per processor Cores / Threads: 32 cores / 64 threads (Intel Hyper-Threading Technology enabled) Memory Channels: 8-channel memory controller for high bandwidth Security Features: Total Memory Encryption, SGX, Control-Flow Enforcement Technology, Platform Firmware Resilience Max Configurations: Up to 4 processors per system Max Turbo Frequency: Up to 4.10 GHz
Specifications
| TDP | 250 W (configurable down to 225 W / 205 W via Intel Speed Select Technology) |
|---|---|
| UPI | 32 UPI links at 16 GT/s for high-speed inter-processor communication |
| PCIe | PCI Express 5.0; up to 80 lanes available |
| Cache | 60 MB L3 cache; 2 MB L2 cache per core; 80 KB L1 cache per core |
| Socket | FCLGA4677 |
| T_CASE | 83 °C; DTS Max 98 °C |
| Launch Date | Q1 2023 |
| Memory Type | DDR5-4800 MT/s (1DPC); DDR5-4400 MT/s (2DPC); ECC memory supported |
| Package Size | 77.5 mm x 51.5 mm |
| miniCategory | Server Components |
| shopCategory | data-center |
| Base Frequency | 2.40 GHz |
| Memory Support | Up to 4 TB maximum per processor |
| navSubCategory | Servers & Storage |
| Cores / Threads | 32 cores / 64 threads (Intel Hyper-Threading Technology enabled) |
| Memory Channels | 8-channel memory controller for high bandwidth |
| navMainCategory | Network Infrastructure |
| shopSubcategory | Servers |
| supplierCategory | HPE Server Parts |
| Security Features | Total Memory Encryption, SGX, Control-Flow Enforcement Technology, Platform Firmware Resilience |
| Max Configurations | Up to 4 processors per system |
| Max Turbo Frequency | Up to 4.10 GHz |
| shopSubcategorySlug | servers |
Live inventory and list price are not published on this catalog. Submit an RFQ for verified commercial terms. This page does not assert stock, delivery time, warranty, ratings, or partner status.
