HPE

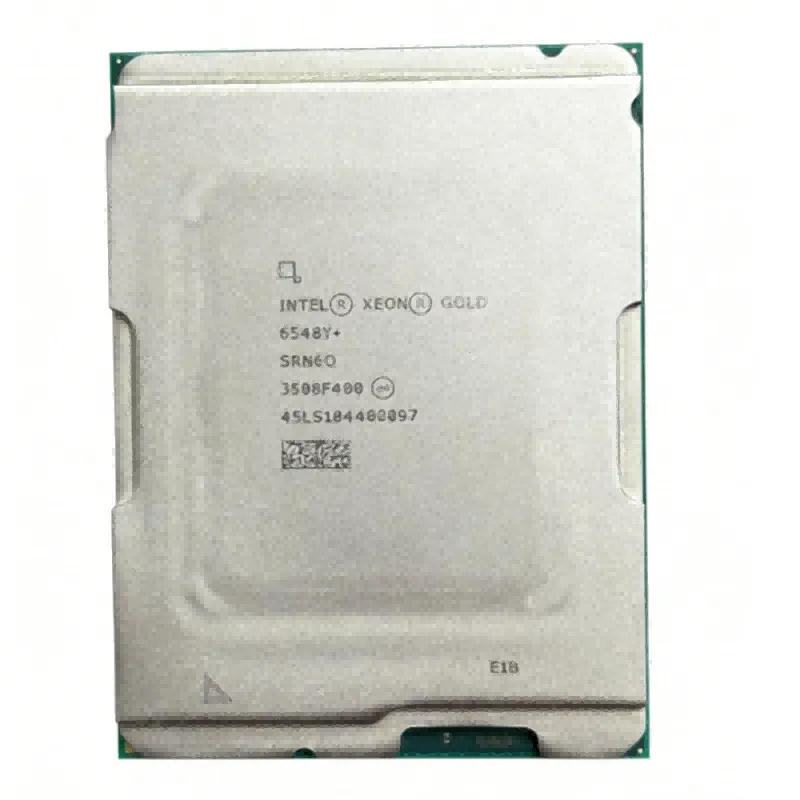

HPE P53562-B21
SKU / Part NV-EP-2572
IT & Computing Equipment / Servers
- Catalog family: IT & Computing Equipment / Servers
- Part number / SKU: NV-EP-2572
- Manufacturer: HPE
HPE P53562-B21 SKU / Model: P53562-B21 Brand: HPE Technical specifications: Packaging: Socket Type: FCLGA4677 Package Carrier: E1B Cache Memory: L1 Cache: 80 KB per core (2,560 KB total) L2 Cache: 2 MB per core (64 MB total) L3 Cache: 60 MB (shared) Power & Thermal: TDP: 250 W Case Temperature (TCASE): 83 °C DTS Max Temperature: 97 °C Basic Parameters: Processor Generation: 5th Gen Xeon Scalable Processors (Emerald Rapids) Product Line: Xeon Gold Model Number: 6548Y+ Launch Date: Q4 2023 Market Segment: Server / Cloud / Density-Optimized Lithography: Intel 7 (10nm Enhanced SuperFin) Interconnect & I/O: Ultra Path Interconnect (UPI): 3 links UPI Speed: 20 GT/s PCI Express Revision: 5.0 Maximum PCI Express Lanes: 80 Scalability: 2S (2-socket) Memory Specifications: Maximum Memory Size: Up to 4 TB Memory Type: DDR5-5200 MT/s (1 DPC), ECC supported Maximum Memory Channels: 8 ECC Memory Support: Yes Core & Thread Configuration: Total Cores: 32 Total Threads: 64 (with Hyper-Threading Technology) Processor Base Frequency: 2.5 GHz Max Turbo Frequency: 4.1 GHz High-Priority Cores: 12 (2.7 GHz base) Low-Priority Cores: 20 (2.4 GHz base)
Specifications
| Packaging | Socket Type: FCLGA4677 Package Carrier: E1B |
|---|---|
| Cache Memory | L1 Cache: 80 KB per core (2,560 KB total) L2 Cache: 2 MB per core (64 MB total) L3 Cache: 60 MB (shared) |
| miniCategory | Server Components |
| shopCategory | data-center |
| navSubCategory | Servers & Storage |
| Power & Thermal | TDP: 250 W Case Temperature (TCASE): 83 °C DTS Max Temperature: 97 °C |
| navMainCategory | Network Infrastructure |
| shopSubcategory | Servers |
| Basic Parameters | Processor Generation: 5th Gen Xeon Scalable Processors (Emerald Rapids) Product Line: Xeon Gold Model Number: 6548Y+ Launch Date: Q4 2023 Market Segment: Server / Cloud / Density-Optimized Lithography: Intel 7 (10nm Enhanced SuperFin) |
| supplierCategory | HPE Server Parts |
| Interconnect & I/O | Ultra Path Interconnect (UPI): 3 links UPI Speed: 20 GT/s PCI Express Revision: 5.0 Maximum PCI Express Lanes: 80 Scalability: 2S (2-socket) |
| shopSubcategorySlug | servers |
| Memory Specifications | Maximum Memory Size: Up to 4 TB Memory Type: DDR5-5200 MT/s (1 DPC), ECC supported Maximum Memory Channels: 8 ECC Memory Support: Yes |
| Core & Thread Configuration | Total Cores: 32 Total Threads: 64 (with Hyper-Threading Technology) Processor Base Frequency: 2.5 GHz Max Turbo Frequency: 4.1 GHz High-Priority Cores: 12 (2.7 GHz base) Low-Priority Cores: 20 (2.4 GHz base) |
Live inventory and list price are not published on this catalog. Submit an RFQ for verified commercial terms. This page does not assert stock, delivery time, warranty, ratings, or partner status.
