Overview

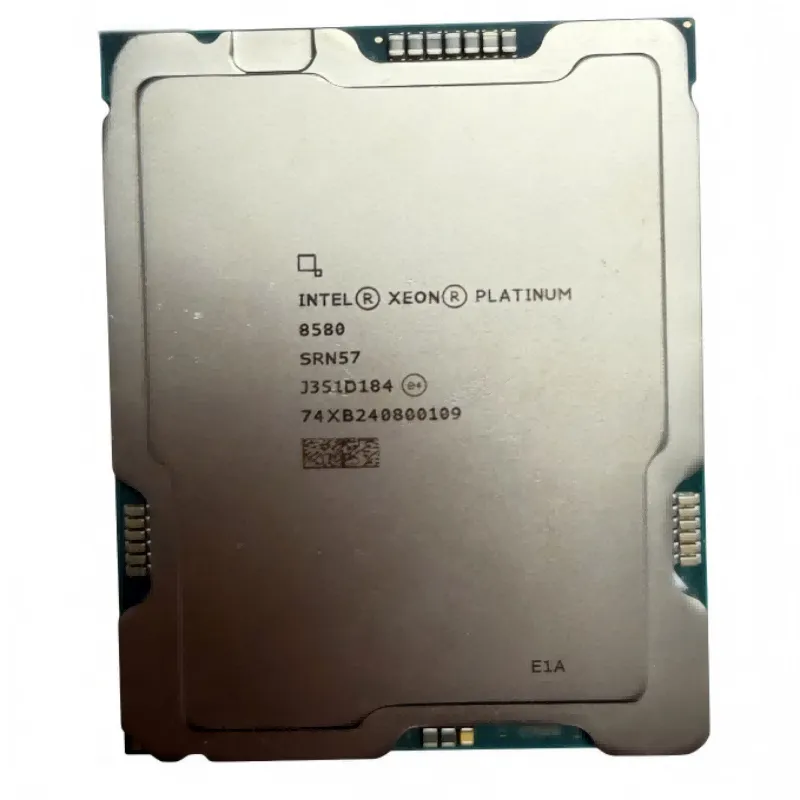

Quality HPE Server Parts for GCC B2B buyers, Xeon Platinum 8580 Processor with 60 Cores 120 Threads and 300 MB L3 Cache, 2000-4000 USD,10 MOQ,8580
- Part number
- NV-EP-2568
- Brand
- HPE
- Feature
- Specification
- L1 Cache
- 80 KB per core (4,800 KB total)
- L2 Cache
- 2 MB per core (120 MB total)
- L3 Cache
- 300 MB (shared across all cores)
Specifications
| Part number | NV-EP-2568 |
|---|---|
| Brand | HPE |
| Feature | Specification |
| L1 Cache | 80 KB per core (4,800 KB total) |
| L2 Cache | 2 MB per core (120 MB total) |
| L3 Cache | 300 MB (shared across all cores) |
| Interface | Specification |
| Parameter | Value |
| Cache Level | Capacity |
| Launch Date | Q4 2023 |
| Lithography | Intel 7 (10nm Enhanced SuperFin) |
| Memory Type | DDR5-5600 MT/s (1 DPC) |
| Scalability | 2S (2-socket configurations) |
| Socket Type | FCLGA4677 |
| Total Cores | 60 |
| Model Number | 8580 |
| Package Size | 77.5 mm x 56.5 mm |
| Product Line | Xeon Platinum |
| Specification | Details |
| Total Threads | 120 (with Hyper-Threading Technology) |
| Market Segment | Server/Enterprise |
| Memory Feature | Specification |
| Package Carrier | E1A |
| Case Temperature | 81 °C |
| PCI Express Lanes | 80 |
| Low-Priority Cores | 44 @ 1.8 GHz |
| DTS Max Temperature | 98 °C |
| High-Priority Cores | 16 @ 2.2 GHz |
| Max Turbo Frequency | 4.0 GHz |
| Maximum Memory Size | Up to 4 TB |
| PCI Express Revision | 5.0 |
| Processor Generation | 5th Gen Xeon Scalable Processors (Emerald Rapids) |
| Physical Characteristic | Specification |
| All-Core Turbo Frequency | 2.9 GHz |
| Processor Base Frequency | 2.0 GHz |
| TDP (Thermal Design Power) | 350 W |
| Ultra Path Interconnect (UPI) | 4 UPI links @ 20 GT/s |
| Category | IT & Computing Equipment |
| Product type | Servers |
Documents
Datasheet — NV-EP-2568
Available on request; sent by email with your quotation.
Compatibility
- Interface
- Specification
- Socket Type
- FCLGA4677
Parts from the same HPE family
Need to confirm compatibility with existing equipment? Send the models in your quote request or on WhatsApp and our engineers will check before you order.
