HPE

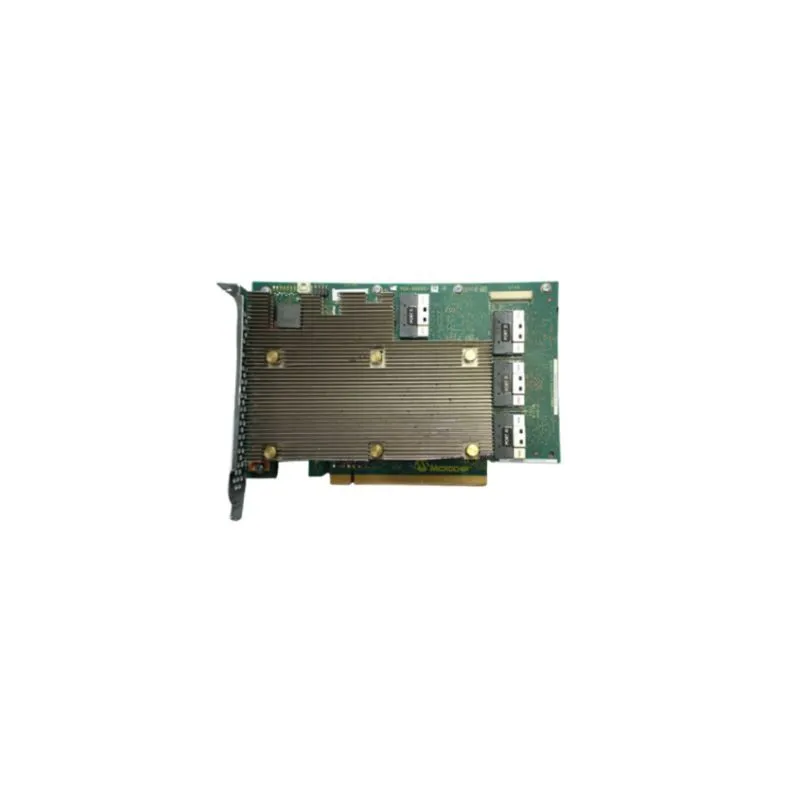

HPE P47184-B21
SKU / Part P47184-B21
IT & Computing Equipment / Servers
- Catalog family: IT & Computing Equipment / Servers
- Part number / SKU: P47184-B21
- Manufacturer: HPE
- Form Factor: Standard PCIe Half-Height/Half-Length (HH/HL) Card
HPE P47184-B21 SKU / Model: P47184-B21 Brand: HPE Technical specifications: Form Factor: Standard PCIe Half-Height/Half-Length (HH/HL) Card Lanes: 32 Internal Lanes (x32 Lanes) Part Number: P47184-B21 Host Interface: PCIe 4.0 x16 IOPS Performance: Up to 3.5 million IOPS; 850,000 IOPS in cache mode Main Control Chip: Microchip SmartROC 3200pe Maximum Throughput: 46GB/s bidirectional; 24GB/s per card Cache Specification: 8GB 144bit DDR4 Flash-backed Write Cache (FBWC) Internal Connectors: 4×SlimSAS x8 (32 physical lanes total) Supported Protocols: Tri-mode (24G SAS / 6G SATA / PCIe 4.0 (NVMe 1.4)) Maximum Logical Volumes: 64 Maximum Connected Drives: 32 drives without expander; up to 238 drives with expander
Specifications
| Lanes | 32 Internal Lanes (x32 Lanes) |
|---|---|
| Form Factor | Standard PCIe Half-Height/Half-Length (HH/HL) Card |
| Part Number | P47184-B21 |
| miniCategory | Server Components |
| shopCategory | data-center |
| Host Interface | PCIe 4.0 x16 |
| navSubCategory | Servers & Storage |
| navMainCategory | Network Infrastructure |
| shopSubcategory | Servers |
| IOPS Performance | Up to 3.5 million IOPS; 850,000 IOPS in cache mode |
| supplierCategory | HPE Server Parts |
| Main Control Chip | Microchip SmartROC 3200pe |
| Maximum Throughput | 46GB/s bidirectional; 24GB/s per card |
| Cache Specification | 8GB 144bit DDR4 Flash-backed Write Cache (FBWC) |
| Internal Connectors | 4×SlimSAS x8 (32 physical lanes total) |
| Supported Protocols | Tri-mode (24G SAS / 6G SATA / PCIe 4.0 (NVMe 1.4)) |
| shopSubcategorySlug | servers |
| Maximum Logical Volumes | 64 |
| Maximum Connected Drives | 32 drives without expander; up to 238 drives with expander |
Live inventory and list price are not published on this catalog. Submit an RFQ for verified commercial terms. This page does not assert stock, delivery time, warranty, ratings, or partner status.
