Overview

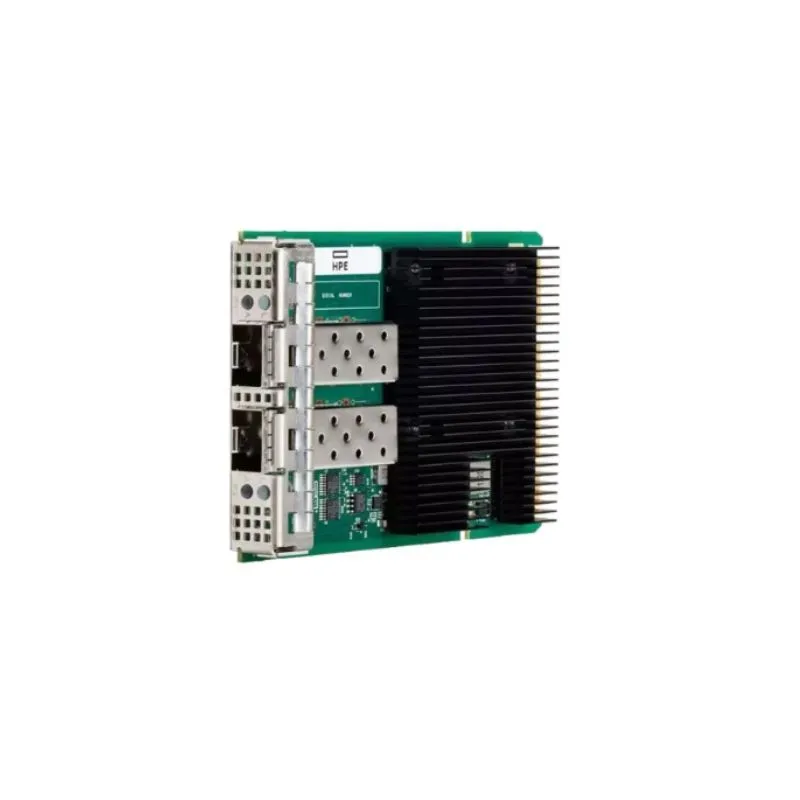

Quality HPE Server Parts for GCC B2B buyers, Ethernet 10/25Gb 2 Port SFP28 OCP3 Adapter For HPE P10115-B21 Broadcom BCM57414, 130 USD,1 MOQ,China
- Part number
- P10115-B21
- Brand
- HPE
- Warranty
- Genuine HPE hardware warranty, optional extended enterprise coverage
- Form Factor
- OCP3 (Open Compute Project 3.0) modular, hot-plug enabled
- Host Interface
- PCI Express 3.0 x8 (backward compatible with PCIe 2.0)
- Power Consumption
- Typical 11.2W, maximum 12.8W; low-power mode supported
Specifications
| Part number | P10115-B21 |
|---|---|
| Brand | HPE |
| Warranty | Genuine HPE hardware warranty, optional extended enterprise coverage |
| Form Factor | OCP3 (Open Compute Project 3.0) modular, hot-plug enabled |
| Host Interface | PCI Express 3.0 x8 (backward compatible with PCIe 2.0) |
| Power Consumption | Typical 11.2W, maximum 12.8W; low-power mode supported |
| Controller Chipset | Broadcom BCM57414 NetXtreme-E Ethernet Controller |
| Data Transfer Rate | 10Gbps / 25Gbps per port (auto-negotiation supported) |
| Port Configuration | 2-port SFP28 (optical/copper transceiver compatible) |
| Specification Item | Detailed Parameter |
| Supported Protocols | IPv4/IPv6, RoCE v2, SR-IOV, VXLAN, NVGRE, RSS, DPDK, PXE Boot |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Compatible HPE Servers | HPE ProLiant DL360, DL380, DL345, ML350 Gen10/Gen10+/Gen11 (OCP3 slot) |
| Certification & Compliance | HPE Original Certified, FCC, CE, RoHS, REACH compliant |
| Manufacturer Part Number (MPN) | P10115-B21 |
| Category | IT & Computing Equipment |
| Product type | Servers |
Documents
Datasheet — P10115-B21
Available on request; sent by email with your quotation.
Compatibility
- Form Factor
- OCP3 (Open Compute Project 3.0) modular, hot-plug enabled
- Host Interface
- PCI Express 3.0 x8 (backward compatible with PCIe 2.0)
- Compatible HPE Servers
- HPE ProLiant DL360, DL380, DL345, ML350 Gen10/Gen10+/Gen11 (OCP3 slot)
Parts from the same HPE family
Need to confirm compatibility with existing equipment? Send the models in your quote request or on WhatsApp and our engineers will check before you order.
