HPE

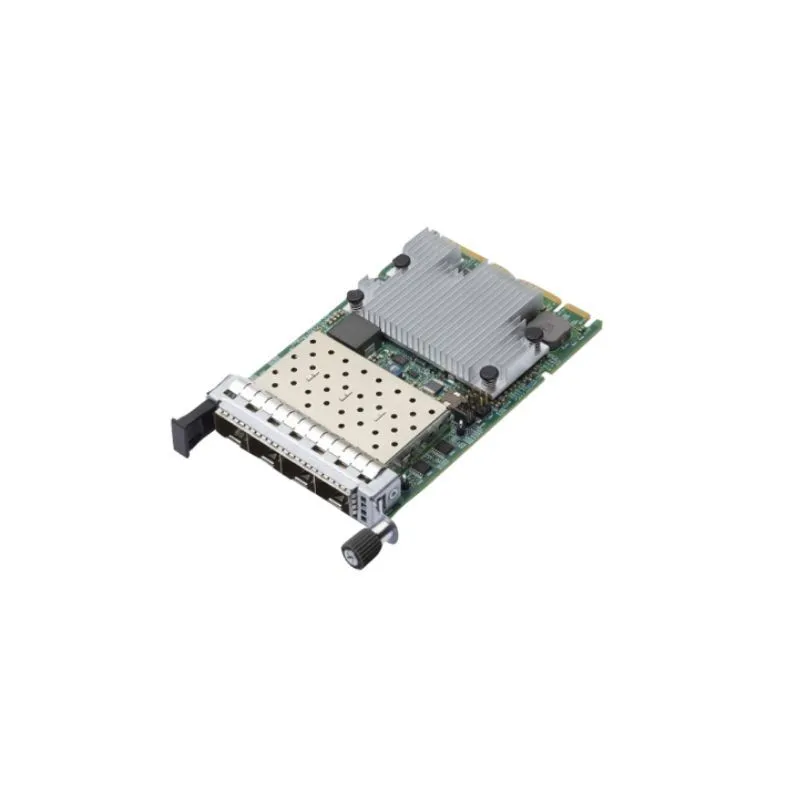

HPE P26269-B21
SKU / Part NV-EP-2492
IT & Computing Equipment / Servers
- Catalog family: IT & Computing Equipment / Servers
- Part number / SKU: NV-EP-2492
- Manufacturer: HPE
- Form Factor: OCP3 (Open Compute Project 3.0) modular, hot-plug capable
HPE P26269-B21 SKU / Model: P26269-B21 Brand: HPE Technical specifications: Form Factor: OCP3 (Open Compute Project 3.0) modular, hot-plug capable Host Interface: PCI Express 4.0 x16 (backward compatible with PCIe 3.0) Warranty Support: Genuine HPE hardware warranty, eligible for enterprise extended coverage Power Consumption: Typical 15.5W, maximum 17W; low-power idle mode supported Controller Chipset: Broadcom BCM57504 NetXtreme-E Ethernet Controller Data Transfer Rate: 10Gbps / 25Gbps per port (auto-negotiation supported) Port Configuration: 4-port SFP28 (fiber/copper transceiver compatible) Specification Item: Detailed Parameter Supported Protocols: IPv4/IPv6, RoCE v2, SR-IOV, VXLAN, NVGRE, RSS, DPDK, PXE Boot Operating Temperature: 0°C to 55°C (32°F to 131°F) Compatible HPE Servers: HPE ProLiant DL360, DL380, DL345, ML350 Gen10+/Gen11 (OCP3 slot) Certification & Compliance: HPE Original Certified, FCC, CE, RoHS, REACH compliant Manufacturer Part Number (MPN): P26269-B21
Specifications
| Form Factor | OCP3 (Open Compute Project 3.0) modular, hot-plug capable |
|---|---|
| miniCategory | Server Components |
| shopCategory | data-center |
| Host Interface | PCI Express 4.0 x16 (backward compatible with PCIe 3.0) |
| navSubCategory | Servers & Storage |
| navMainCategory | Network Infrastructure |
| shopSubcategory | Servers |
| Warranty Support | Genuine HPE hardware warranty, eligible for enterprise extended coverage |
| supplierCategory | HPE Server Parts |
| Power Consumption | Typical 15.5W, maximum 17W; low-power idle mode supported |
| Controller Chipset | Broadcom BCM57504 NetXtreme-E Ethernet Controller |
| Data Transfer Rate | 10Gbps / 25Gbps per port (auto-negotiation supported) |
| Port Configuration | 4-port SFP28 (fiber/copper transceiver compatible) |
| Specification Item | Detailed Parameter |
| Supported Protocols | IPv4/IPv6, RoCE v2, SR-IOV, VXLAN, NVGRE, RSS, DPDK, PXE Boot |
| shopSubcategorySlug | servers |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Compatible HPE Servers | HPE ProLiant DL360, DL380, DL345, ML350 Gen10+/Gen11 (OCP3 slot) |
| Certification & Compliance | HPE Original Certified, FCC, CE, RoHS, REACH compliant |
| Manufacturer Part Number (MPN) | P26269-B21 |
Live inventory and list price are not published on this catalog. Submit an RFQ for verified commercial terms. This page does not assert stock, delivery time, warranty, ratings, or partner status.
